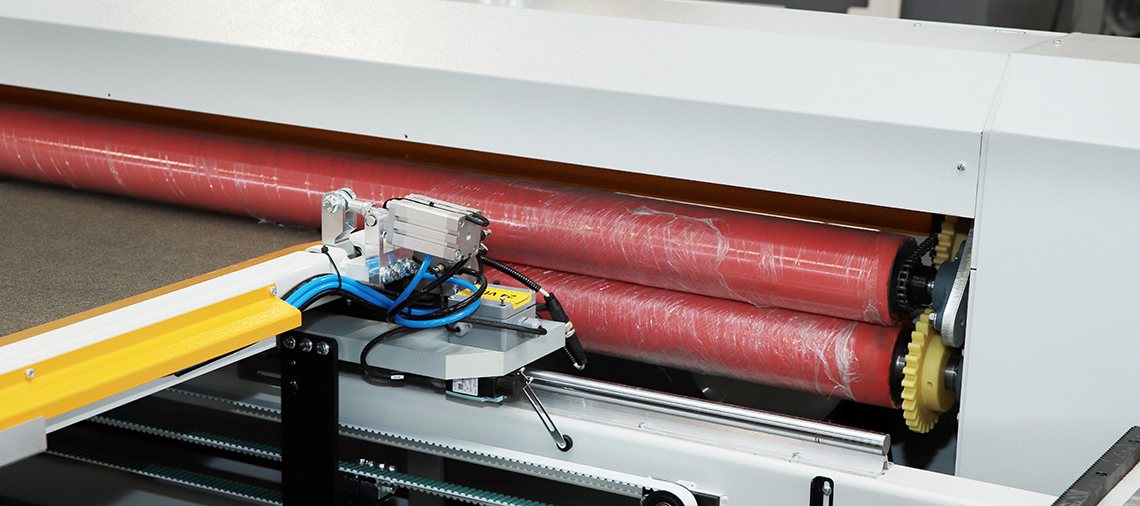

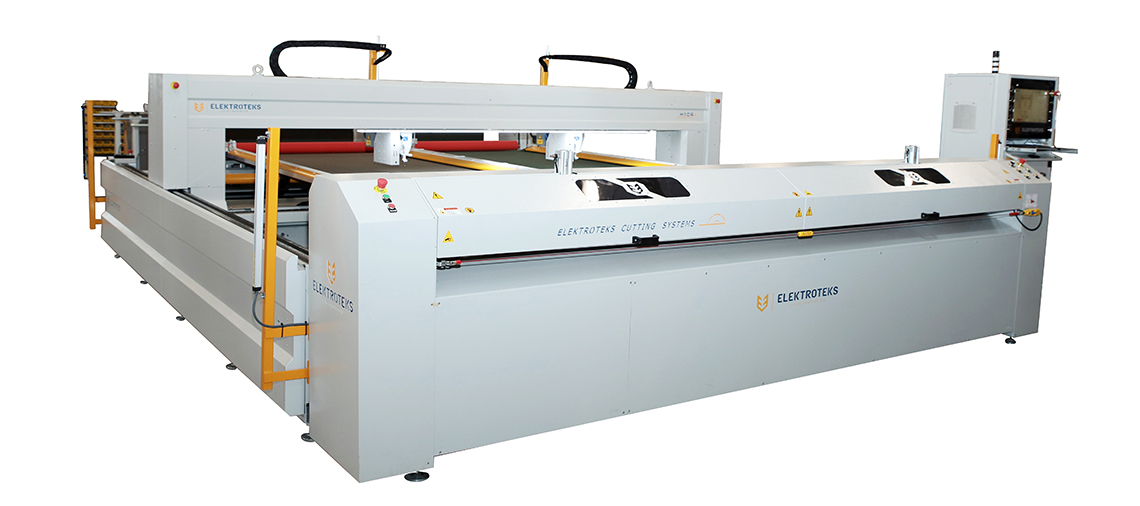

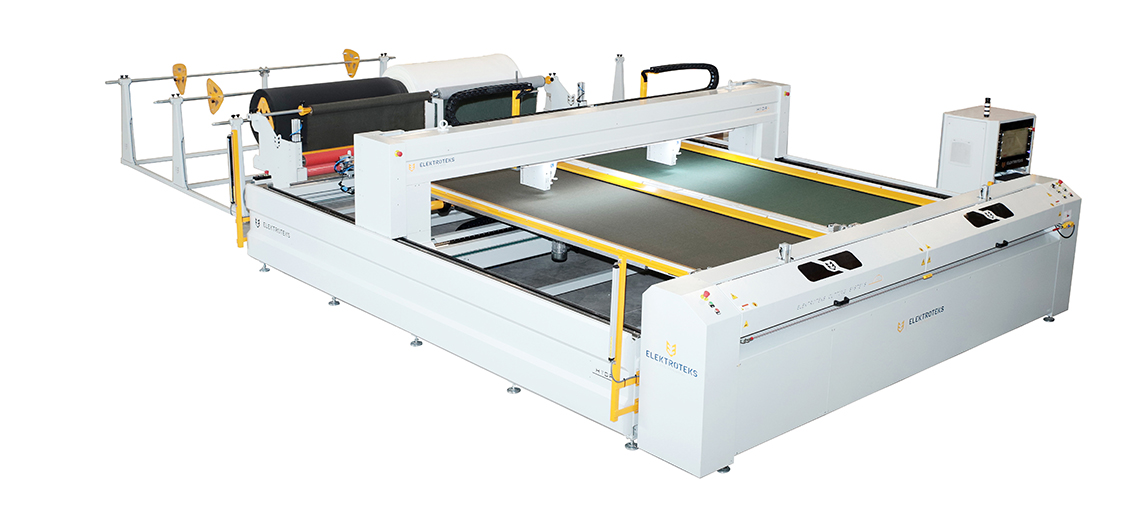

HYDRA is a full automatic double feeding system, high speed double heads quilting machine for upholstery, mattress and home textile industries. It performs the whole operations of feeding with motorized rollers, quilting and cutting the quilt in length.
The double feeding system offers quilting two rolls at the same time while offering motorized width adjustment for single feeding mode with the exchange time of 20 seconds. The double feeding system is very useful for high capacity sofa production as well as mattress headboards. It doubles the production of sofa and headboards by quilting two rolls at the same time. On the other hand, changing the mode of feeding to single roll makes you able to quilt high end luxury mattresses as well as wide home textile products.
No quilt repair machine: ability to continue sewing from the stop or desired point
Automatic park positioning when top or bottom thread finish
Automatic measuring of the physical maximum area of sewing to double check with the active pattern design
Easy pattern design adaptation
Motorized width adjustment of the middle and side roll clamps
Your sofas, mattresses, headboards, comforters will overtop among others with the aspects of stitch quality, pattern designs, sustaining quality as well as your efficiency.

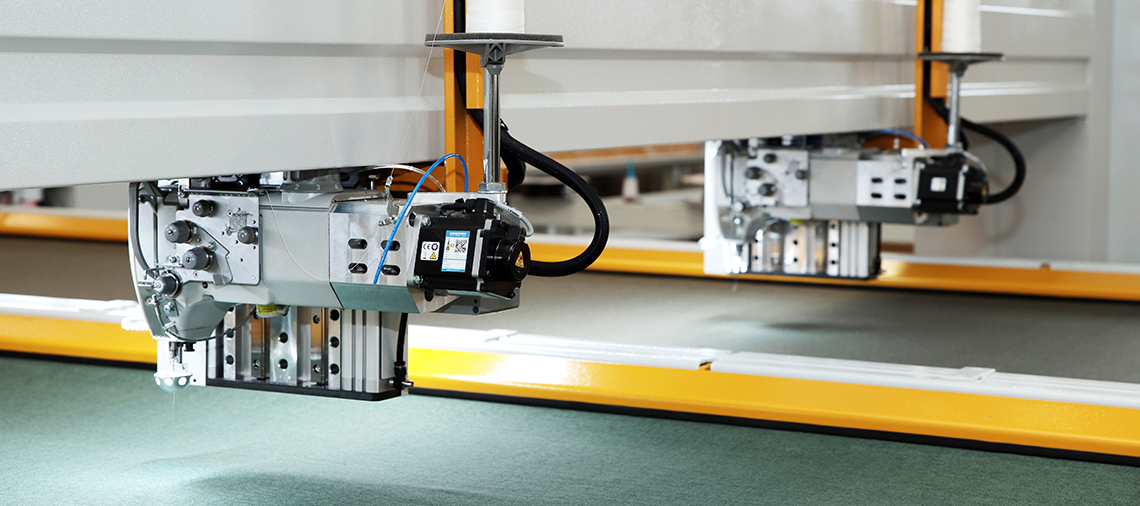

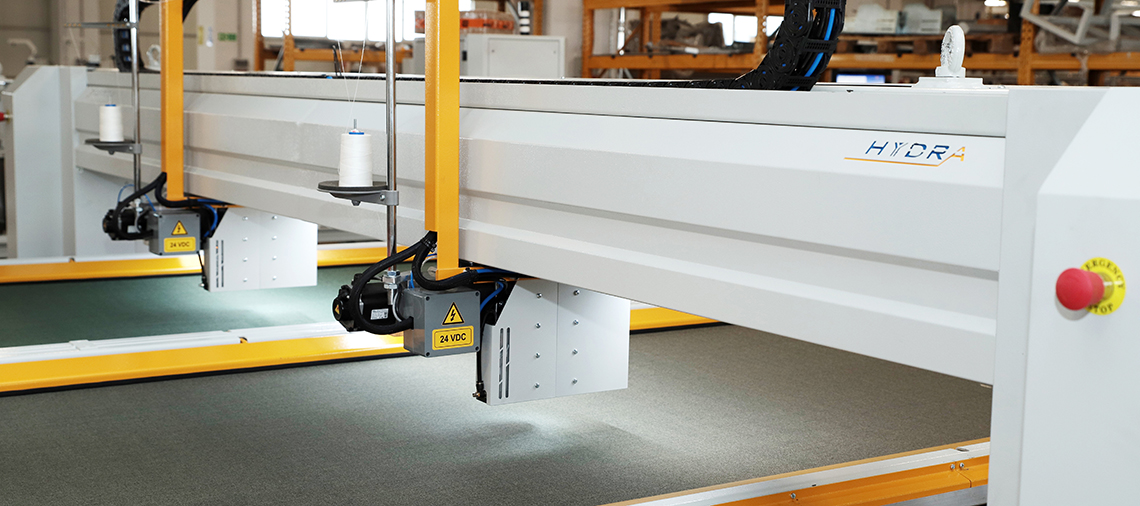

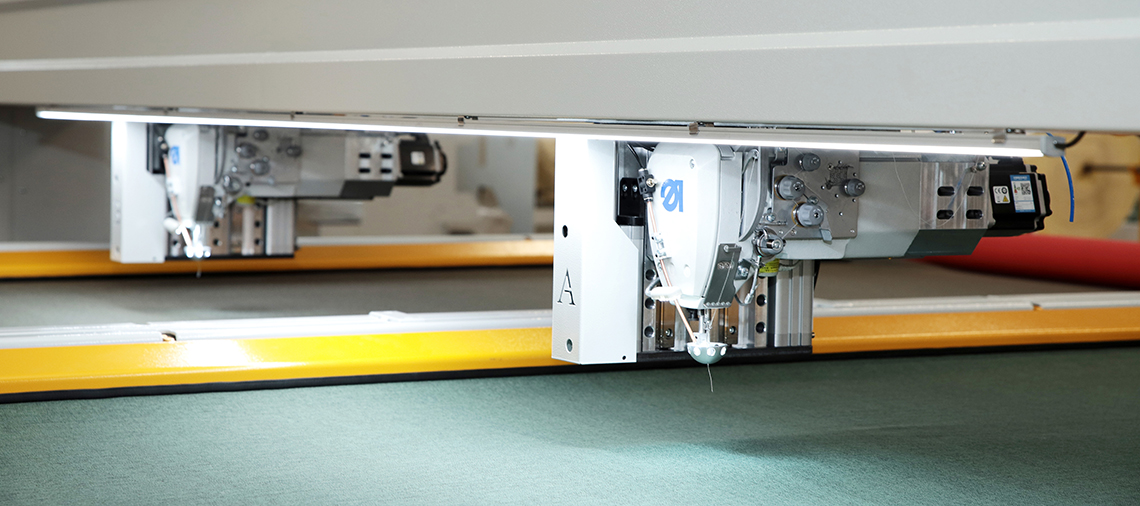

High quality sewing head with worldwide parts availability: Dürkopp Adler
Top and bottom thread cutting within 0.5 Seconds

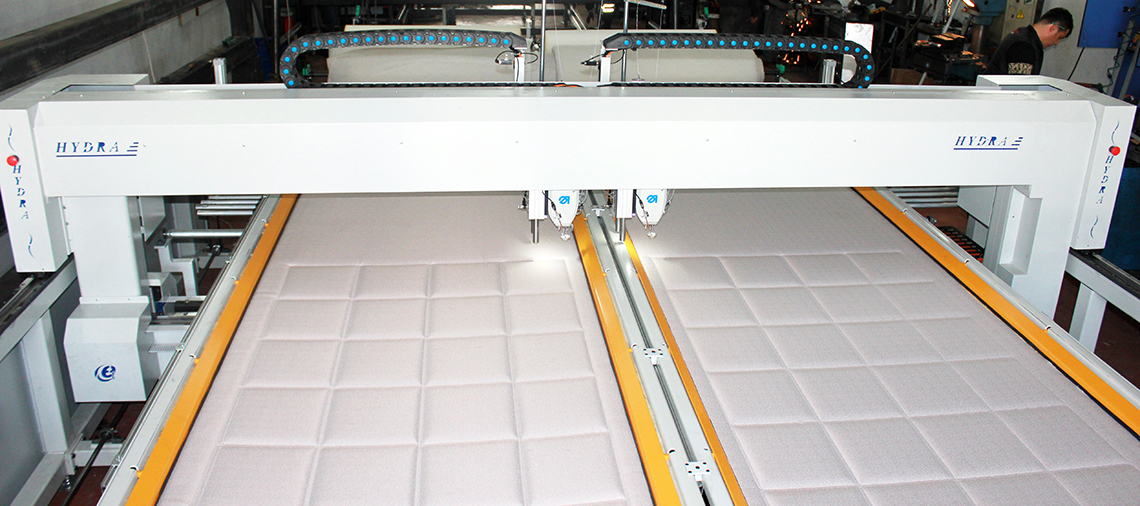

Quilting two different rolls at the same time for higher output
Ability to work in one single roll feeding mode. Transition time between double or single feeding system within seconds
Statistical charts for production data: stitch length, design name, customer name, quilting time, number of stitches, etc.
ElektroteksCare: online after-sales service
Advanced side cutters
Easy problem solving with error display8
Adjustable Material Tension from Both Directions
Reliable Omron control system with the highest efficiency

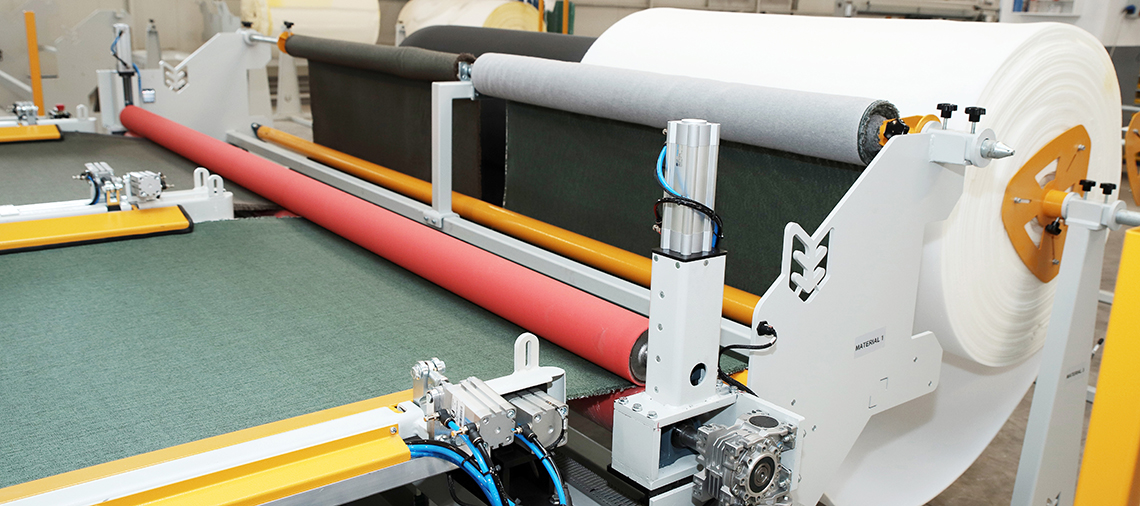

Ergonomic feeding system of multiple rolls
Lifelong Pneumatic System with Low Air Consumption
Techical Details
Max. Sewing Speed
3200 rpm
Number Of Sewing Heads
2
Max. Material Thickness
10 cm
Stitch Length
1 - 10 mm
Sewing Head Type
Durkopp Adler 867
Stitch Type
Lock-Stitch
Type of Bobbin
Dürkopp Adler XXL Dia: 32 mm
Suggested Needle Size Interval
110 – 160
Max. Sewing Speed
20 m/min
Max. Jumping Speed
60 m/min
Number of Ready Pattern Designs (limitless new ones)
1000
Automatic Top and Bottom Thread Cutting
Yes
Automatic Panel Cutter
Yes
Thread Break Detector
Yes
Bobbin Finish Detector
Yes
Automatic Material Finish Detector
Yes
Pattern Design Preparing Software
Yes
Number of Feeding Rolls (Can be Increased as Optional)
5 (x 2: for double roll mode)
Weight
4500 kg
CE Certificate
Yes
Machine Size - Model Max. Sewing Area (Stitch to Stitch Size)
HYDRA-x3y2
Single Feed Mode: 2800 mm (x) x 2600 mm (y)
Double Feed Mode: 2 x 1400 mm (x) x 2600 mm (y)
HYDRA-x3y3
Single Feed Mode: 2800 mm (x) x 2800 mm (y)
Double Feed Mode: 2 x 1400 mm (x) x 2800 mm (y)
HYDRA-x3y4
Single Feed Mode: 2800 mm (x) x 3100 mm (y)
Double Feed Mode: 2 x 1400 mm (x) x 3100 mm (y)
**Customs sizes are available upon request
X: Fabric Width Axis
Y: Fabric Length Axis
