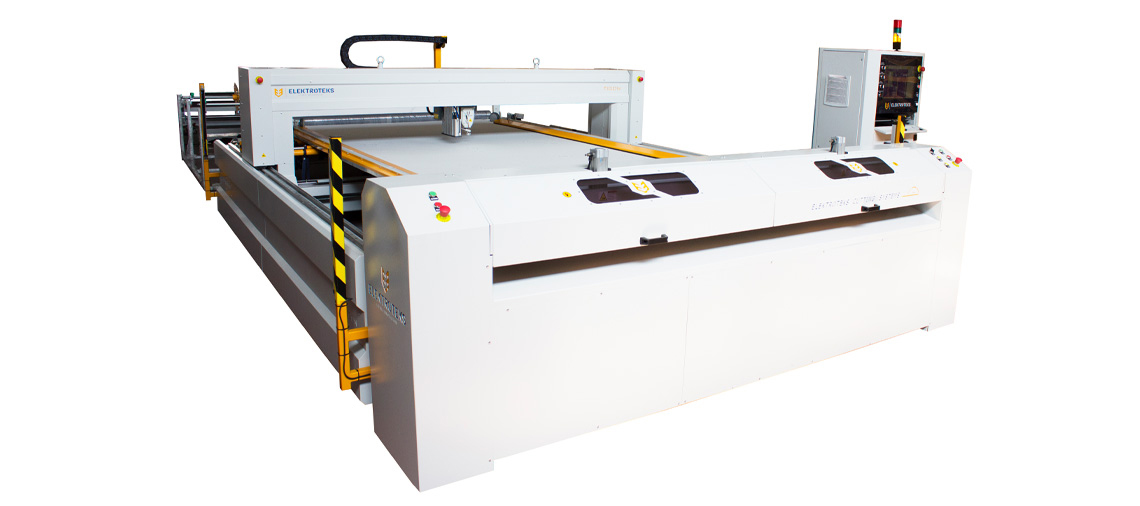

TIGON is a full automatic feeding system high speed single needle quilting machine for high end luxury mattress, home textile and upholstery works. TIGON performs the whole operations of feeding with motorized rollers, quilting and cutting the quilt in length.
With the ability of quilting very different products, TIGON offers perfect quilting quality for all the products from very thin garment products to thick materials for mattress industry with multiple layers including foam, visco, memory foam, latex, polyester fiber, non woven, jacquard fabric, knitted fabric, leather and down fill.
Your mattresses, headboards, comforters will overtop among others with the aspects of stitch quality, pattern designs, sustaining quality as well as your efficiency.
Adjustable stitch length for different points on the design
Simply the most functional quilting software in the world
Easy pattern design adaptation
No quilt repair machine: ability to continue sewing from the stop or desired point
TIGON offers the fastest and smoothest quilting among the machines in the market. The premium components used on the machine and extra strengthening processes end up with lifelong durability.

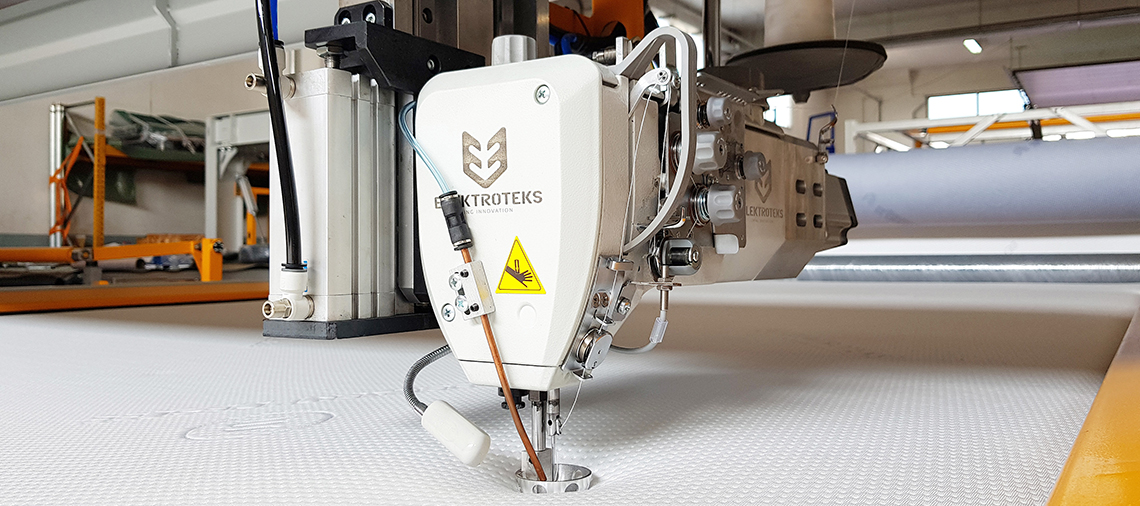

High quality sewing head with worldwide parts availability: Dürkopp Adler
Automatic top and bottom thread cutting within 0.5 Seconds

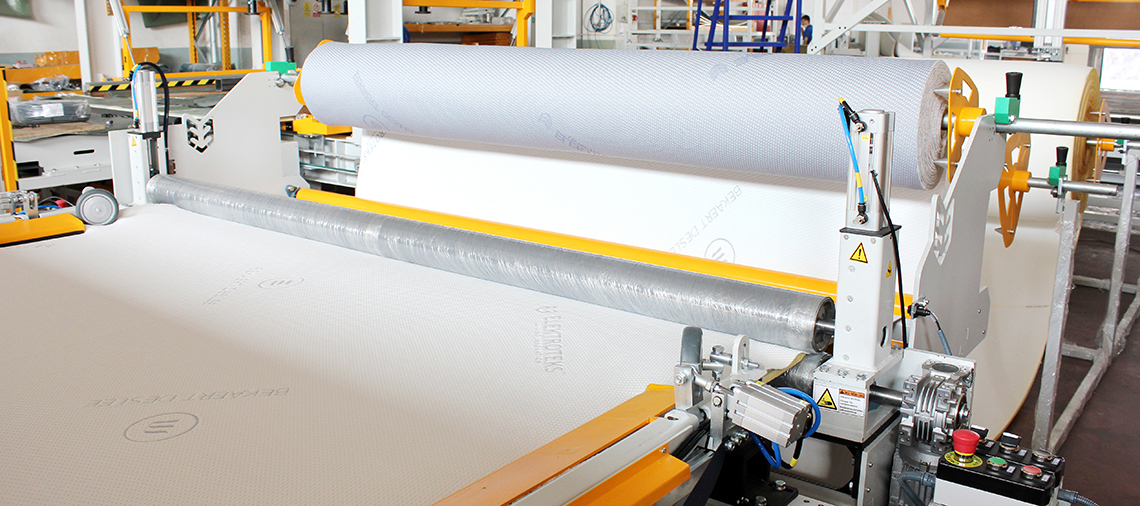

Ergonomic feeding system of multiple rolls
Automatic park positioning when top or bottom thread finish
Statistical charts for production data: stitch length, design name, customer name, quilting time, number of stitches, etc.
ElektroteksCare: online after-sales service

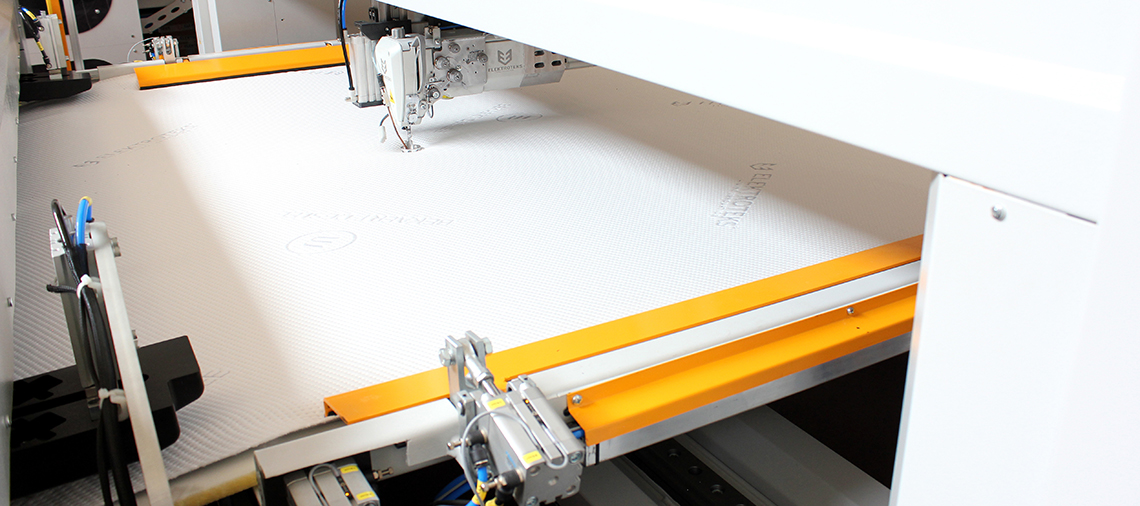

Advanced side cutters
Easy problem solving with error display
Adjustable material tension from both sides
Symmetric, parallel, one head, double head working modes even in the same design
Optical barriers for human safety
Lifelong Pneumatic System with Low Air Consumption
Techical Details
Max. Sewing Speed
3500 rpm
Number Of Sewing Heads
1
Max. Material Thickness
10 cm
Stitch Length
1 - 10 mm
Sewing Head Type
Durkopp Adler 867
Stitch Type
Kilit Dikiş
Type of Bobbin
Dürkopp Adler XXL Dia: 32 mm
Suggested Needle Size Interval
110 – 160
Max. Sewing Speed
22 m/min
Max. Jumping Speed
60 m/min
Number of Ready Pattern Designs (limitless new ones)
1000
Automatic Top and Bottom Thread Cutting
Yes
Automatic Panel Cutter
Yes
Thread Break Detector
Yes
Bobbin Finish Detector
Yes
Automatic Material Finish Detector
Yes
Pattern Design Preparing Software
Yes
Number of Feeding Rolls (Can be Increased as Optional)
5
Weight
3500 kg
CE Certificate
Yes
Machine Size - Model Max. Sewing Area (Stitch to Stitch Size)
TIGON-x1y1 - 2100 mm (x) x 2600 mm (y)
TIGON-x1y2 - 2100 mm (x) x 2900 mm (y)
TIGON-x1y3 - 2100 mm (x) x 3100 mm (y)
TIGON-x2y1 - 2500 mm (x) x 2600 mm (y)
TIGON-x2y2 - 2500 mm (x) x 2900 mm (y)
TIGON-x2y3 - 2500 mm (x) x 3100 mm (y)
TIGON-x3y2 - 3200 mm (x) x 2900 mm (y)
TIGON-x3y3 - 3200 mm (x) x 3100 mm (y)
**Customs sizes are available upon request
X: Fabric Width Axis
Y: Fabric Length Axis
