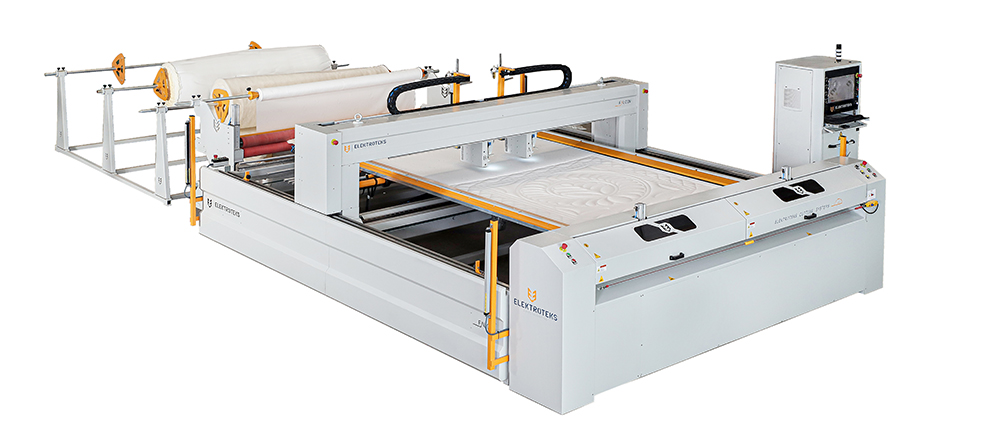

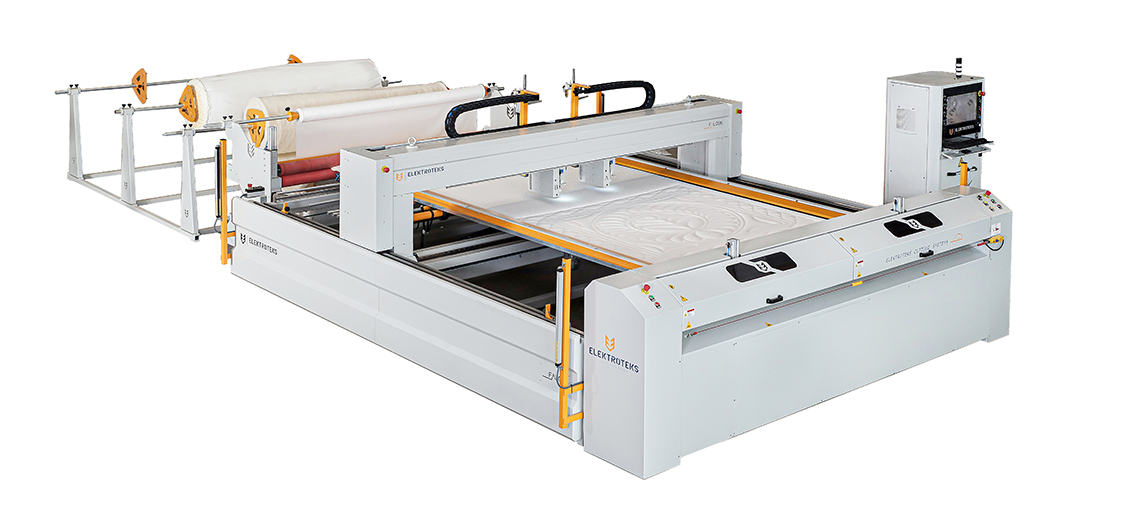

FALCON is a full automatic feeding system high speed double head single needle quilting machine for high end luxury mattress, home textile and upholstery works.

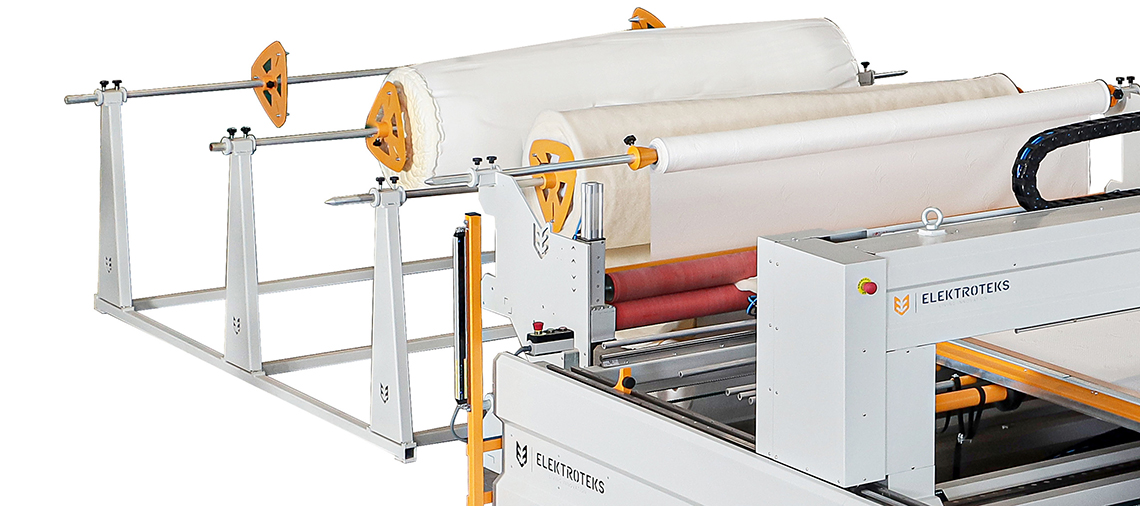

FALCON performs the whole operations of feeding with motorized rollers, quilting and cutting the quilt in length.
FALCON offers the fastest and smoothest quilting among the machines in the market. The premium components used on the machine and extra strengthening processes end up with lifelong durability.
With the ability of quilting very different products, FALCON offers perfect quilting quality for all the products from very thin garment products to thick materials for mattress industry with multiple layers including foam, visco, memory foam, latex, polyester fiber, non woven, jacquard fabric, knitted fabric, leather and down fill.
Full automatic feeding, tensioning, quilting and cutting
Minimum bobbin change with XXL spools (Durkopp Adler)
Automatic thread cutting in less than 0,5 second
Operation modes : symmetric ( Mirror like ) , parallel, single needle
Easy Pattern Creation and Loading

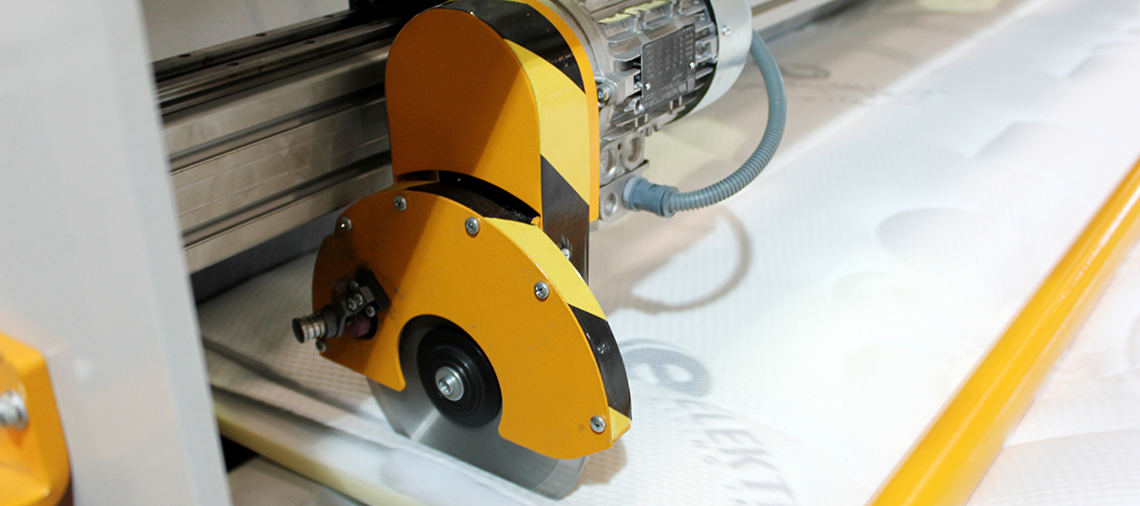

Standard length & sides cutters
High operator safety systems
High accuracy automatic fabric measure control system
Adjustable Material Tensions from All Sides
Remote & Smartphone production monitoring system
Electronic position controlled fabric with adjustment
Flexible and user friendly software
Auto Lubrication System : The sewing head(s) are equipped automatic lubrication systems to prevent wear of parts and avoid down time for efficiency and consistency
ElektroCARE: Integrated Online Support Module Elektroteks Connected Service: Online support module that allow Elektroteks engineers to connect your machine and offer quick troubleshooting and training.
Techical Details
Max. Sewing Speed
3500 rpm

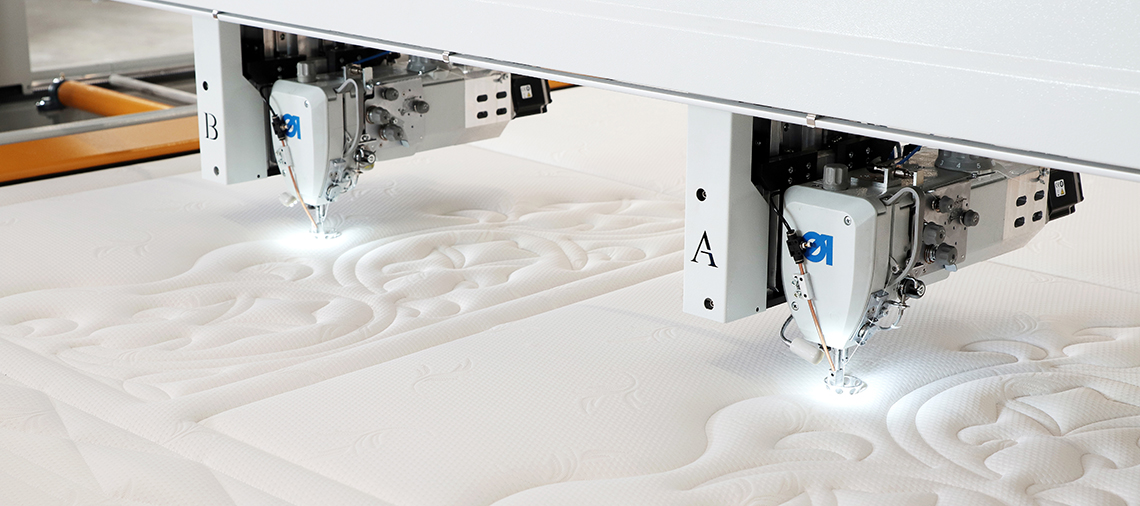

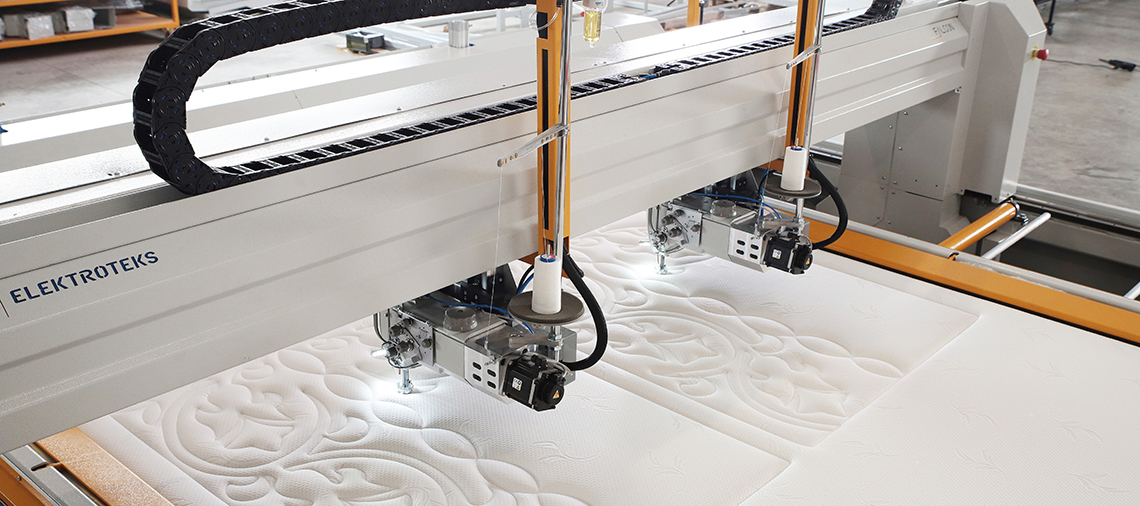

Number Of Sewing Heads
2
Max. Material Thickness
10 cm
Stitch Length
1 mm - 10 mm
Sewing Head Type
Dürkopp Adler 867
Stitch Type
Lock Stitch
Type Of Bobbin
Dürkopp Adler XXL - Dia: 32mm
Suggested Needle Size
120 – 160
Max. Sewing Speed
21 m/min
Max. Jumping Speed
60 m/min
Max. Fabric Width
FALCON - Standard: 2.65m
FALCON - 3000: 3.25m
Max. Sewing Area (Ask for Custom Size)
FALCON - Standard: 2.30m x 2.30m
FALCON - 3000: 2.90m x 2.60m
