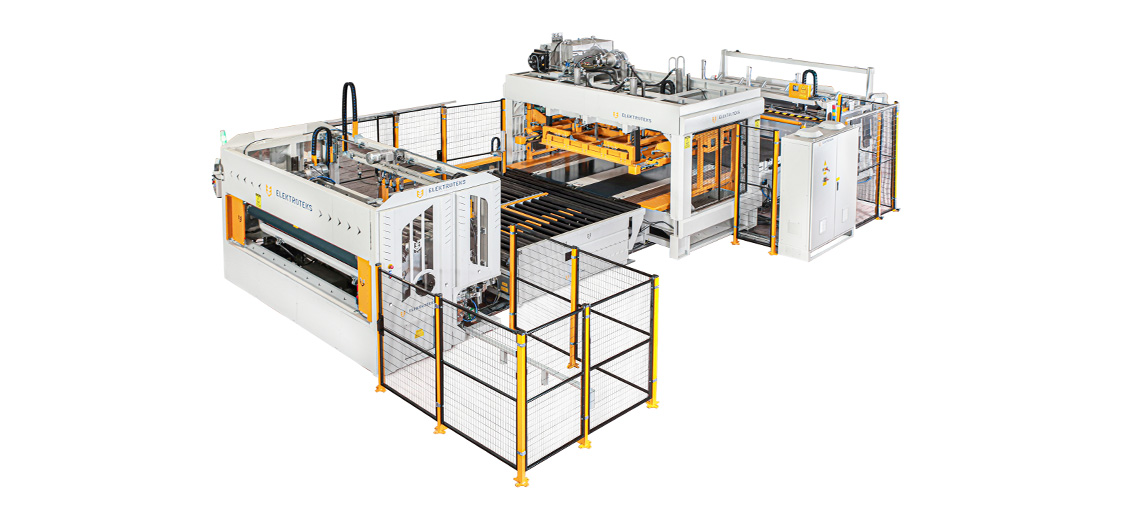

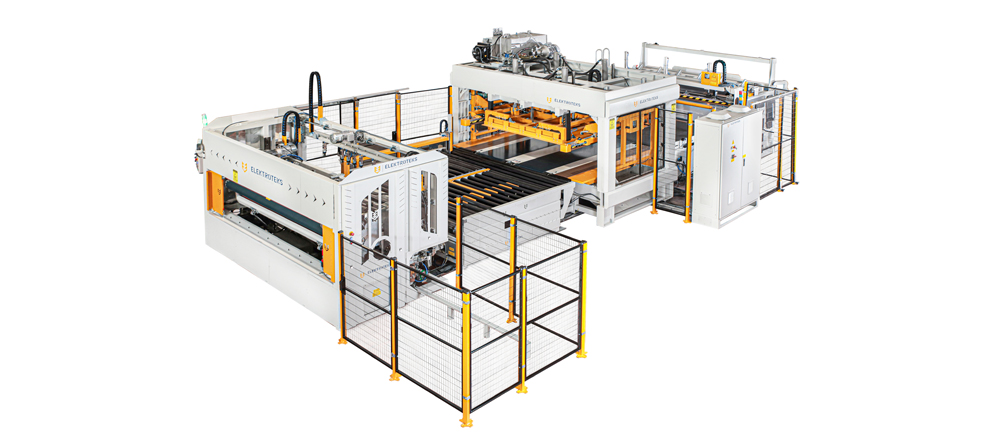

ET-ROLL-400 is a full automatic mattress wrap, compress, fold and roll machine. After compression it can fold the mattress to half and roll afterwards to minimize the shipping, storage and operation costs and maximize the profit and competitiveness.
Thanks to unique design of ET-ROLL-400 it gives possibility to work as wrap-only, wrap-compress, wrap-compress-roll and wrap-compress-fold-roll without adding any extra turning or 90° transfer conveyors. Moreover, with all these options it offers the smallest footprint (installation area) compared to competing machines.
MODEL
ROLL EXIT DIAMATER
STRETCH FILM ROLL
PE FILM ROLL
ET-ROLL-410
25-40cm Adjustable
No
Yes
ET-ROLL-410-SF
25-40cm Adjustable
Yes
No
ET-ROLL-410-SFP
25-40cm Adjustable
Yes
Yes
ET-ROLL-430
43-45cm Adjustable
No
Yes
ET-ROLL-430-SF
43-45cm Adjustable
Yes
No
ET-ROLL-430-SFP
43-45cm Adjustable
Yes
Yes
ET-ROLL-440
33-50cm Adjustable
No
Yes
ET-ROLL-440-SF
33-50cm Adjustable
Yes
No
ET-ROLL-440-SFP
33-50cm Adjustable
Yes
Yes
No hand bagging thanks to auto wrapping system
Self-adjustment for different sizes of mattresses
60 Tons hydraulic adjustable pressure mechanism
Robust structure for the durability
Ability to use as mattress wrapping only without fully compression and rolling
Ability to adjust heating, cooling time for different thickness of film
Automatic side film cutting system
Multidirectional cross conveyor at the exit of the wrap-compress unit: Ability to send the mattresses to roll-pack unit or exit as wrapped only
Ability to pack pocket spring, foam and latex mattresses (bonnel spring mattresses can be rolled with the machine but not suggested for the quality of the mattresses)
Max. Capacity: 30 seconds/per roll (when fed continuously – can change according to the compressibility of the mattress, thickness of the plastic film, exit diameter, etc.)
Heavy Duty Folding Mechanism
Ability to use the machine as PACK-ONLY, PACK-COMPRESS, PACK-COMPRESS-ROLL, PACK-COMPRESS-FOLD-ROLL, ROLL-ONLY
Automatic mattress rotating at the folding section
Much smaller footprint for multifunctional operation (No need to have extra rotating and 90° conveyors)
Ability to give the light mattresses directly to the rolling unit without compression
Lifelong FESTO pneumatics with low air consumption
