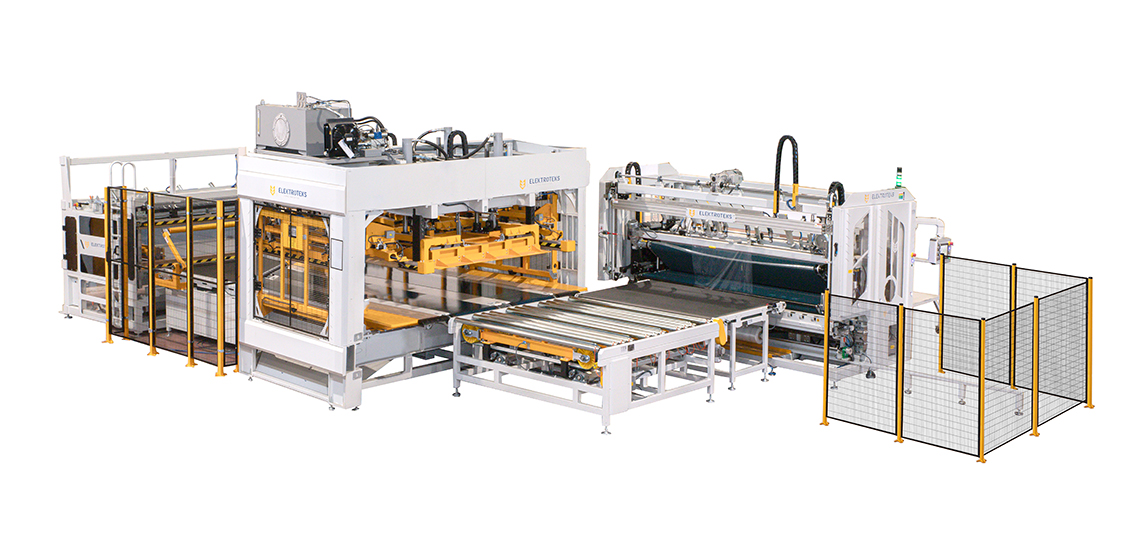

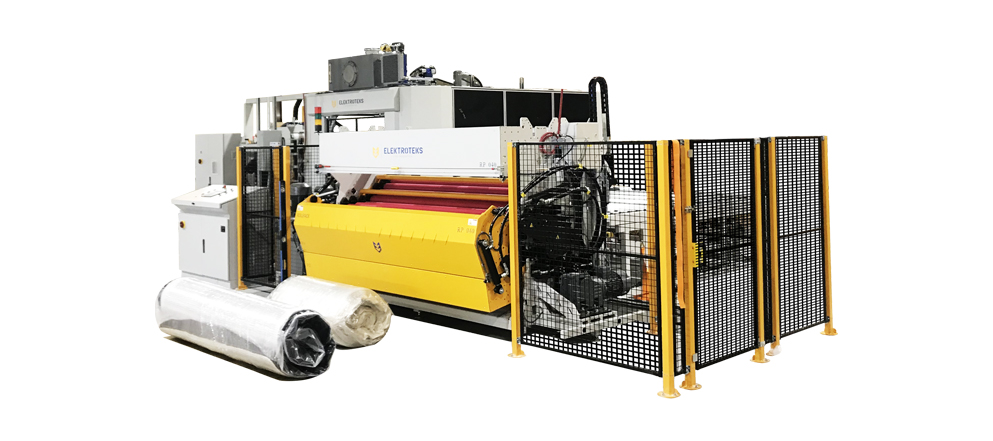

ET-ROLL-300 is a full automatic mattress rollpack machine with the self-wrapping system. The mattress is wrapped fully automatic without any need for manual hand bagging.

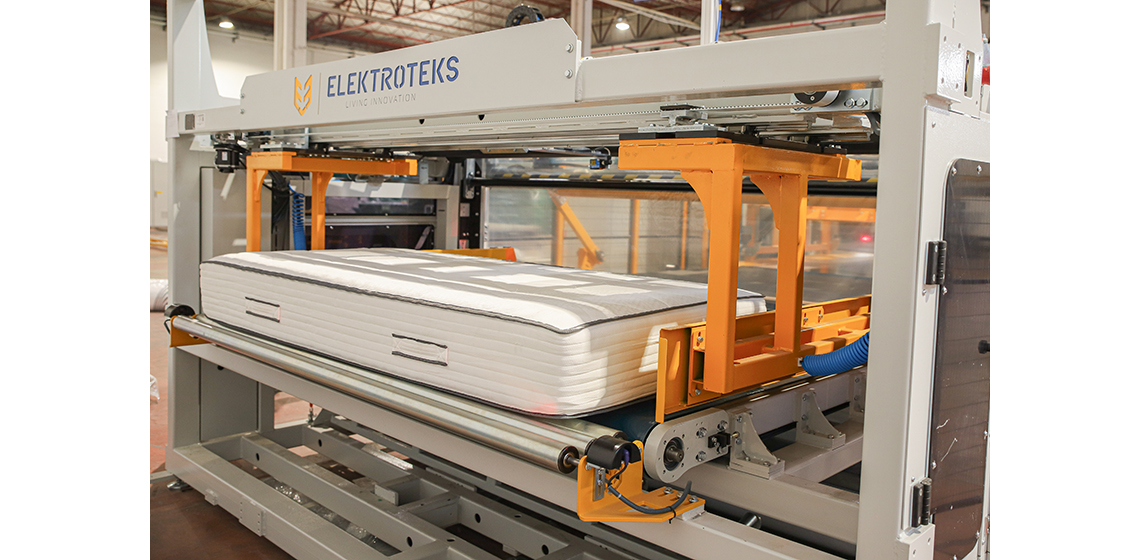

Any type of mattresses are fed by the conveyor and wrapped, compressed, sealed and rolled.

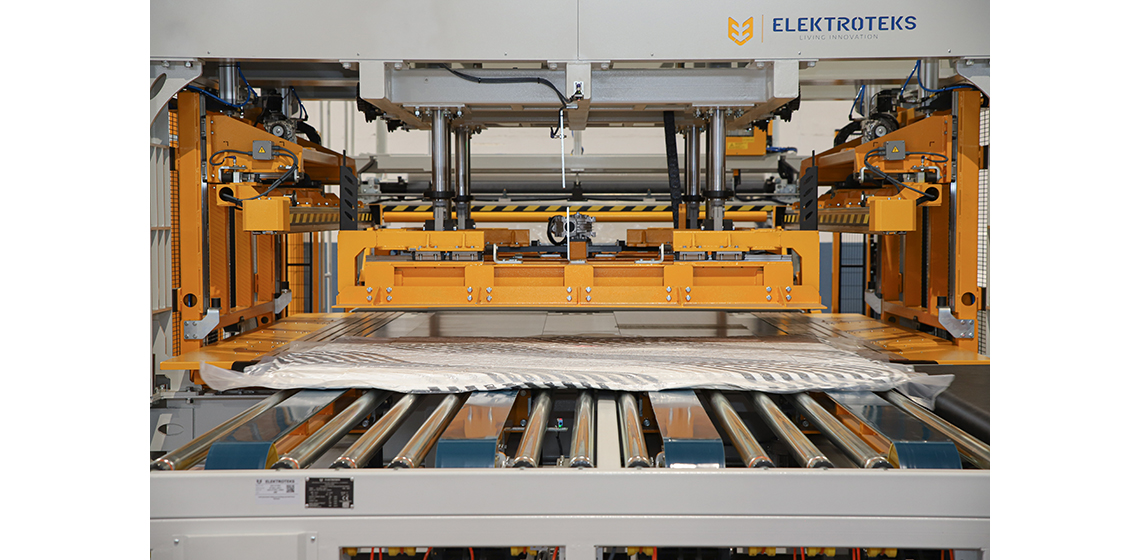

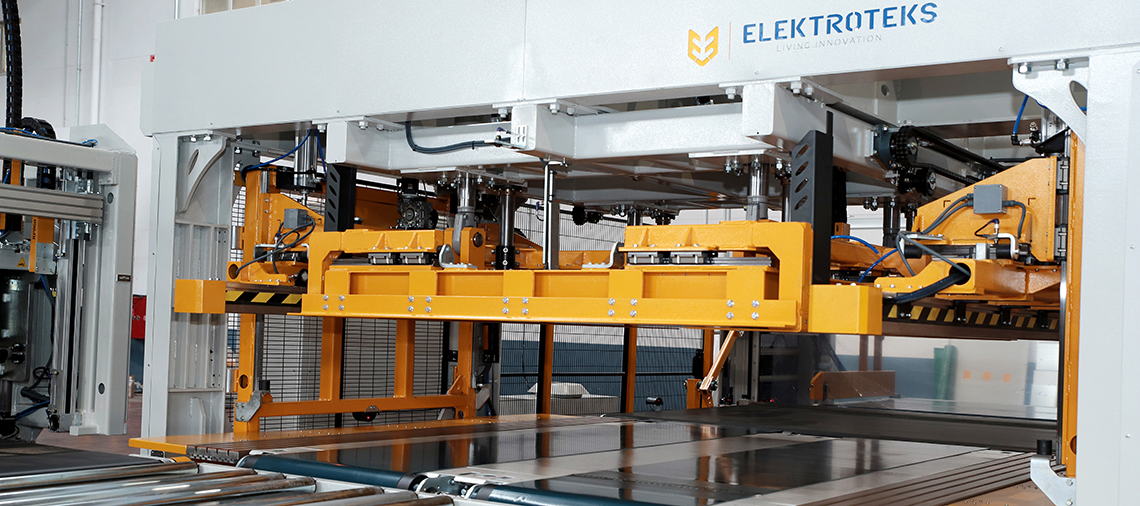

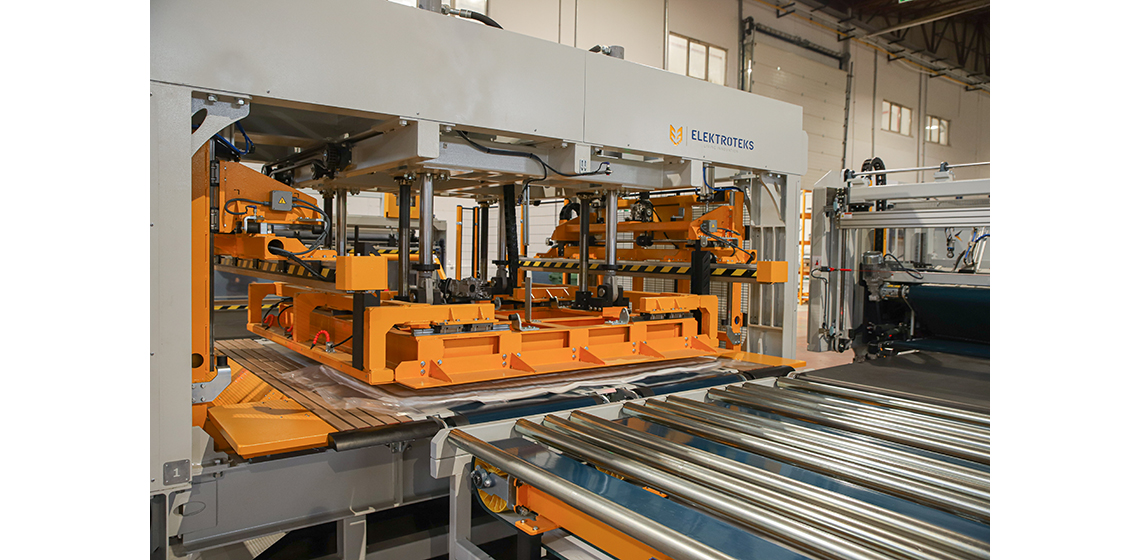

Robust structure is able to apply 60 tons of hydraulic pressure on the mattress in order to make the mattress completely flat and easy to rollpack.
MODEL
ROLL EXIT DIAMATER
STRETCH FILM ROLL
PE FILM ROLL
ET-ROLL-310
25-40cm Adjustable
No
Yes
ET-ROLL-310-SF
25-40cm Adjustable
Yes
No
ET-ROLL-310-SFP
25-40cm Adjustable
Yes
Yes
ET-ROLL-320
33-35cm Adjustable
No
Yes
ET-ROLL-320-SF
33-35cm Adjustable
Yes
No
ET-ROLL-320-SFP
33-35cm Adjustable
Yes
Yes
ET-ROLL-330
43-45cm Adjustable
No
Yes
ET-ROLL-330-SF
43-45cm Adjustable
Yes
No
ET-ROLL-330-SFP
43-45cm Adjustable
Yes
Yes
ET-ROLL-340
33-50cm Adjustable
No
Yes
ET-ROLL-340-SF
33-50cm Adjustable
Yes
No
ET-ROLL-340-SFP
33-50cm Adjustable
Yes
Yes
Thanks to adjustable pressing amount and 90° cross conveyor before the rolling system, ET-ROLL-300 Series can also be used as a normal mattress wrapper without rolling.
Durable resistances with cooling system for uniform heat distribution
No wiring problems and energy saving thanks to cold sealing system

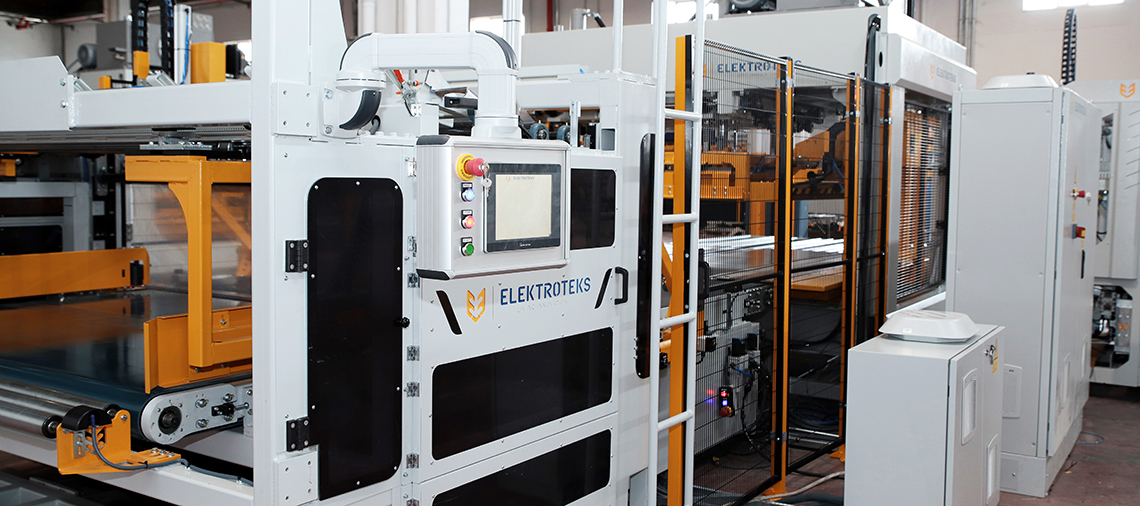

Reliable Omron control system with the highest efficiency
No hand bagging thanks to auto wrapping system
Self-adjustment for different sizes of mattresses

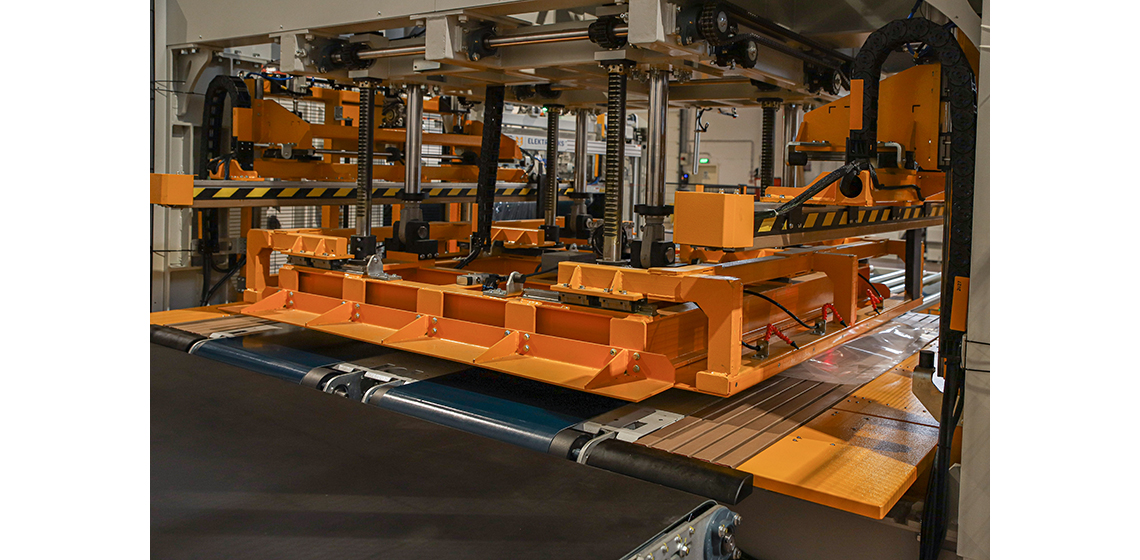

60 Tons hydraulic pressure mechanism
Robust structure
Ability to use as mattress wrapping only without fully compression and rolling
Ability to adjust heating-cooling time for different film thickness

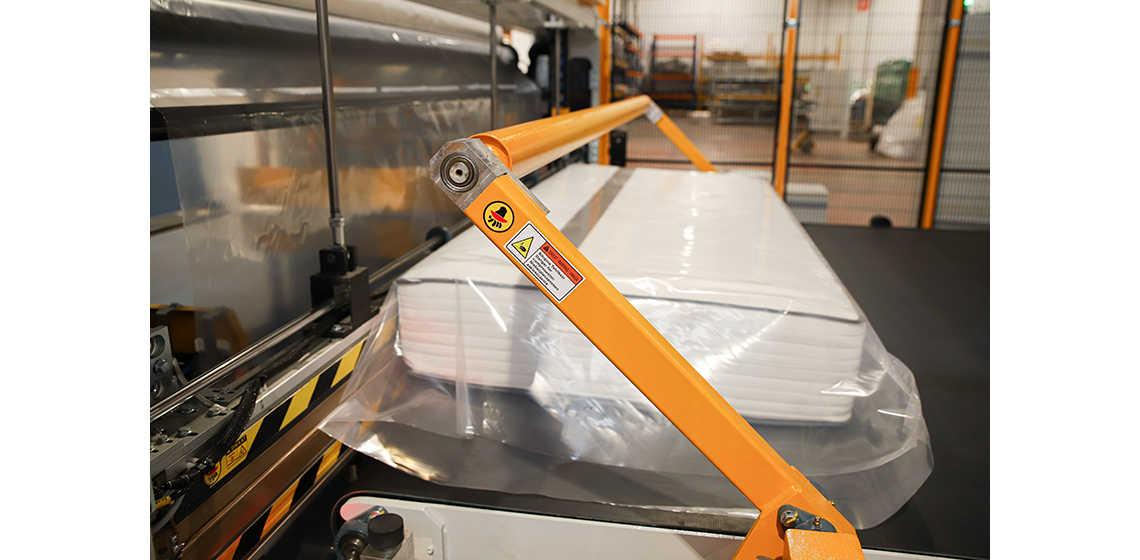

Automatic side film cutting system
Hydraulic rollpack exit system with adjustable roll diamater
No damage on the mattress thanks to rollpack exit system from the back
Multidirectional cross conveyor sends the mattress to the rolling unit or send it to other direction for only-wrapped mattresses
Ability to work with pocket spring, foam and latex mattresses (bonnell is not suggested for the quality of the rolled mattress, although the machine is able to roll)
