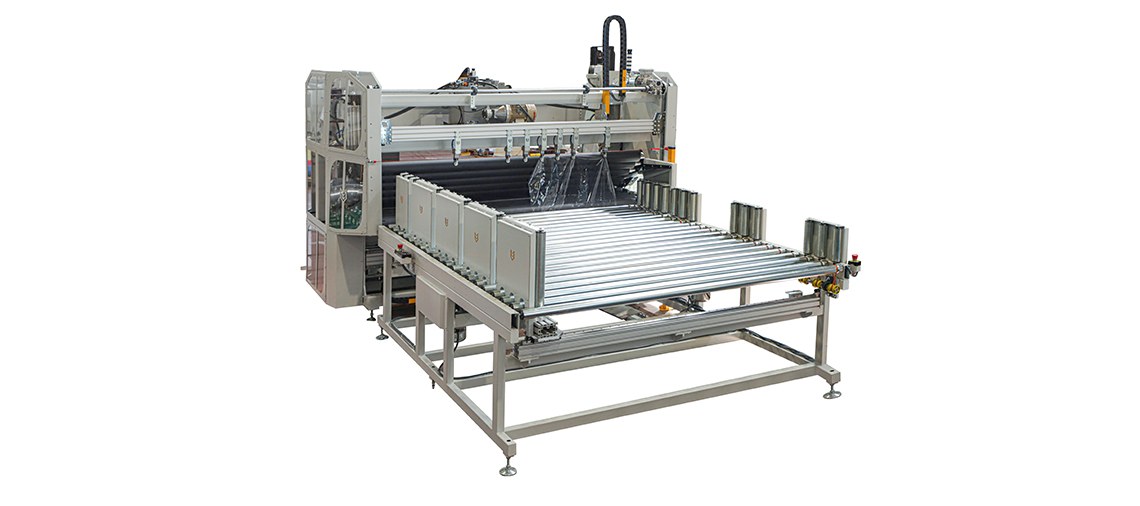

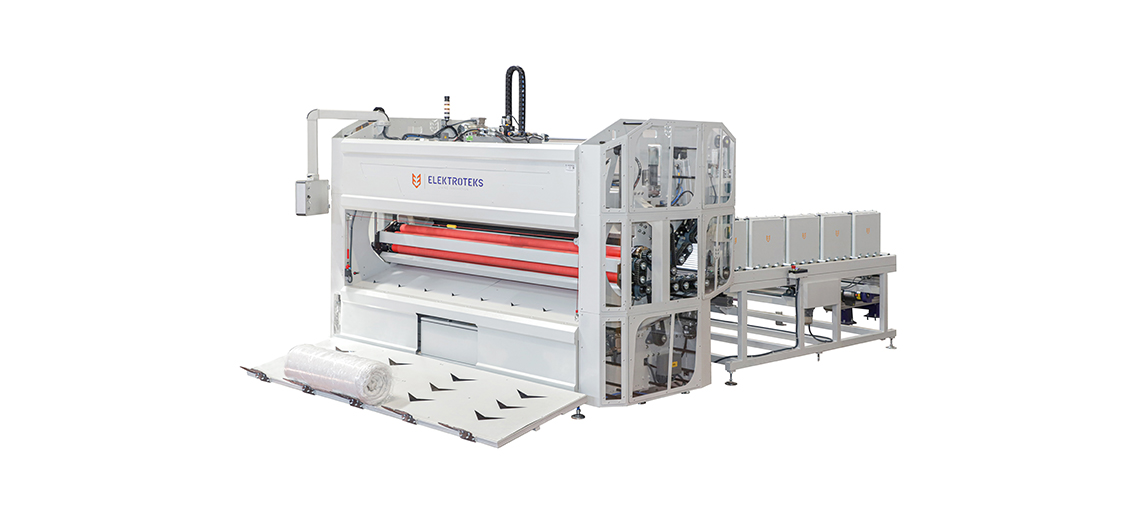

TPR-70 is a high-performance roll-pack machine designed for small and compressible bedding products such as toppers, foam layers, pet beds, crib mattresses, and more. It is engineered to achieve smaller roll diameters with greater compression force, offering a powerful yet compact packaging solution for retail and e-commerce shipments.
Although it has a compact footprint, TPR-70 features a reinforced mechanical structure that allows you to roll-pack challenging materials and products with tight compression
Adjustable roll diameter (19 cm - 29 cm)
Foldable product feeding, enabling reduced roll lengths for large toppers or foam sheets
Compatible with foam, latex, and memory foam products
Hydraulic roll diameter adjustment system
Optional Auto Infeed Guiding System for Assisting Folding Operation
Heavy-duty compression unit, designed to create tighter rolls without damaging material
Simple control interface and low-maintenance construction for long-term efficiency
Travelling stretch film carrier to accommodate various product widths using a single roll size
Techical Details
Capacity
30 seconds per mattress
Max. Mattress Size
220 cm x 220 cm x 22cm
Exit Diameter of the Mattress
19-29 cm Adjustable
Packaging Material at the Roll Cage
Stretch (Additional PE Film Available as Optional)
