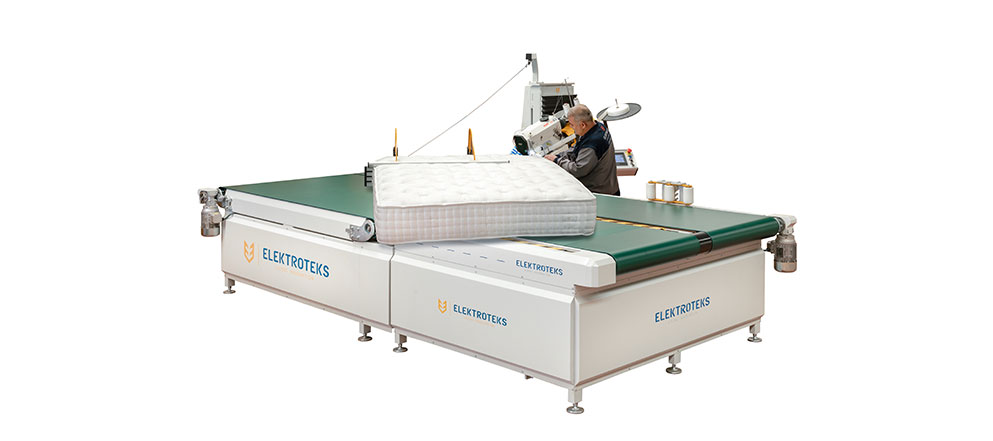

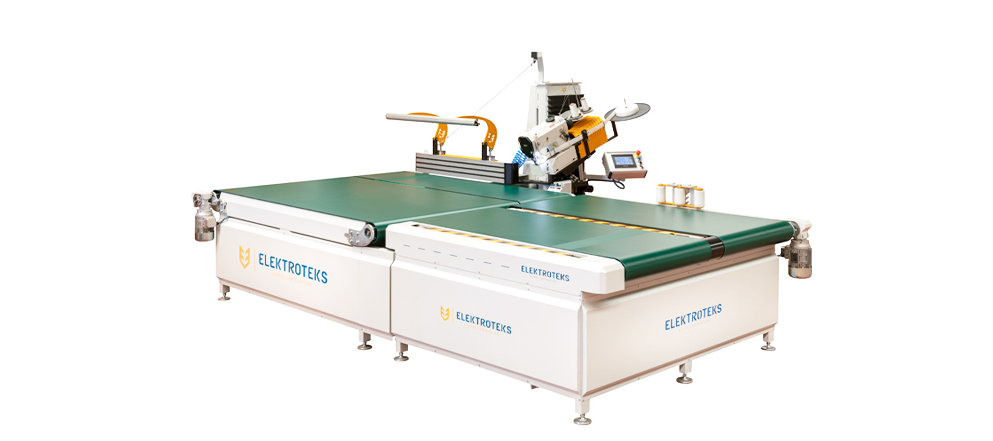

KYK-HS2 is the most advanced and heavy-duty machine in the world for mattress tape edging operation.
The reinforced double gear drive provides perfect strength and durability for the corner rotation system even for the heaviest mattresses. Thanks to elongated height adjustment system, it provides perfect comfort for all the mattresses from 5 cm to 52 cm.
The reduced training time and operator fatigue makes the tape edging operation much easier with the day long performance stability.
The motorized belt and the synchronized mattress rotating arm makes the operator stands stationary and brings easy cornering. Even the heaviest premium mattresses are flipped within seconds thanks to heavy duty flipping system.
The adaptable continuous mattress flow system brings the mattress to the machine and takes it out to the next stations after tape edging is done. The continuous flow system lets the operator sew all the time and reduce a great deal of labor cost.
Easier to find and train tape edge operators
Ability to adapt continuous mattress flow system for lower labor cost wıth higher outputs

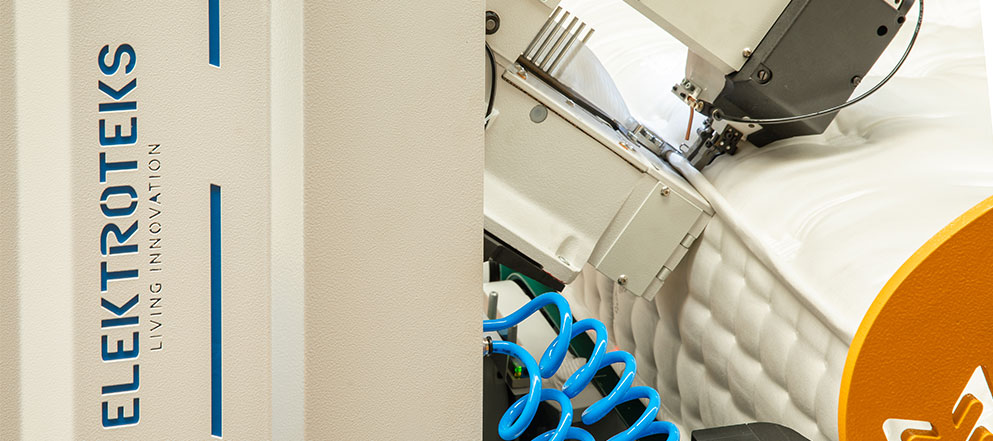

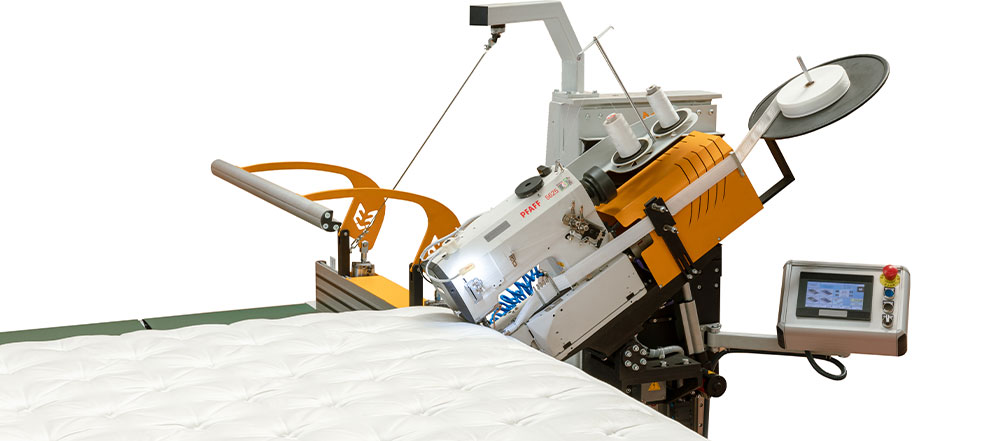

The strongest heavy duty tape edge sewing head Pfaff 5625: chain-stitch with pneumatic foot lift and needle cooling
Heaviest duty head raising and angle adjustment mechanisms to tape edge mattresses from 5 cm to 52 cm
Automatic sewing head height and angle (slope) adjustment
Various speed adjustments for cornering and straight sewing according to operator’s performance and working preferences
Heavy duty auto-flip system with repositioning of the mattress
Triple independent conveyor motors drive to provide the best synchronization for mattress movement
Fully automatic cornering with auto slow-down and turn cycles: without changing the foot pedal
Automatic needle up with pneumatic foot lift system
Lifelong durability of rotating arm drive system even for the heaviest duty mattresses in the world
Adjustable stitch length with precise sewing head and conveyor speed synchronization
Easy and constant corner sewing quality: auto head-down system at the cornering for the highest corner sewing quality
Continuous flow of mattresses with automated transport systems
ElektroCARE: Online after-sales service
Up to 200–250 mattress / 8 Hours Depending on the Operator Performance and Mattress
