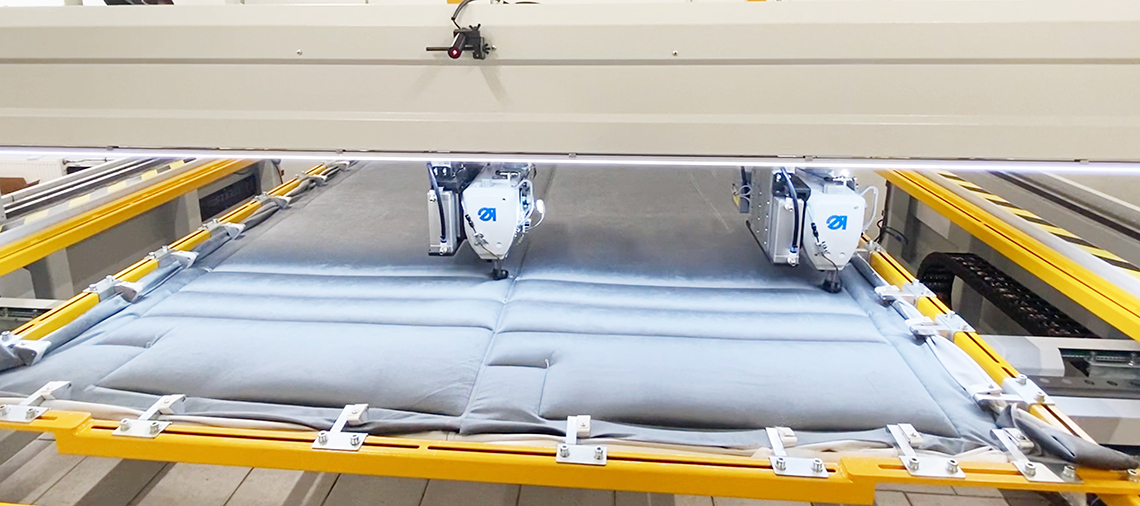

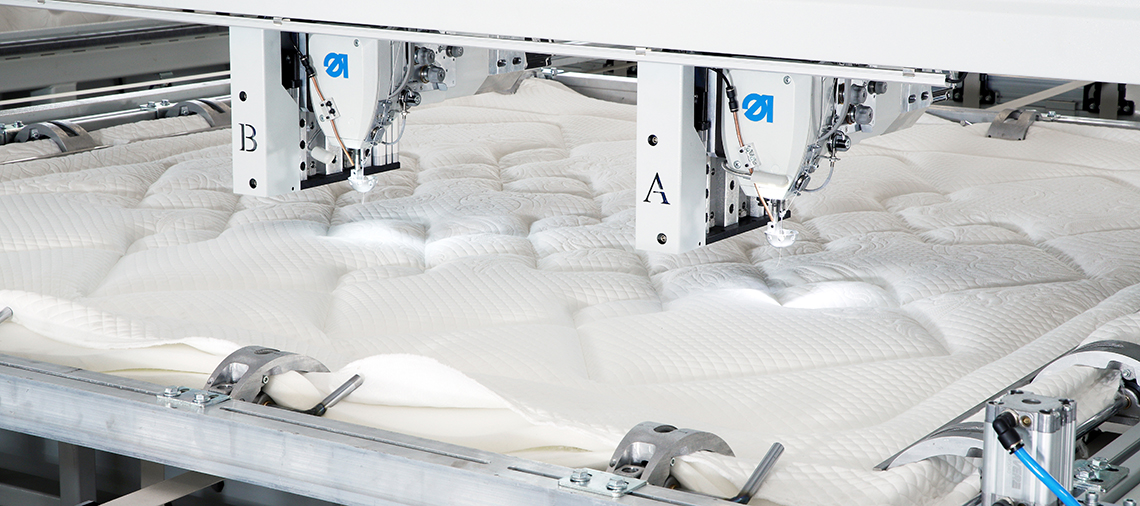

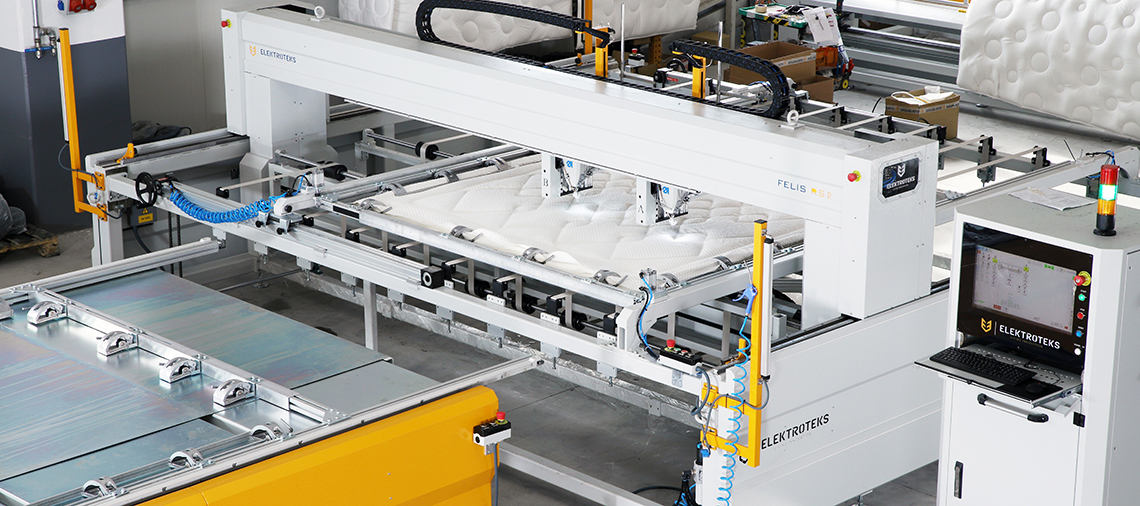

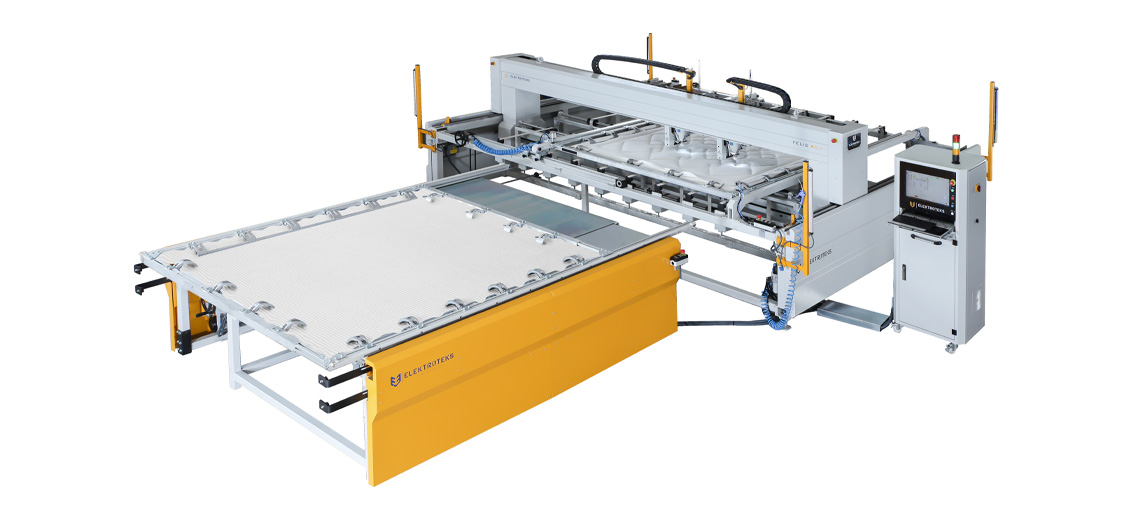

FELIS-RS2 is a double head frame type quilting machine.. It has a moving sewing head and moving bridge to accelerate the movements, increasing the precision of stitches and reducing the footprint.
With the adjustable width double floor preparation table, FELIS-RS2 maximizes the ergonomics for different sizes of frames.
With the ability of quilting very different products, FELIS-RS2offers perfect quilting quality for all the products from very thin garment products to thick materials for mattress industry with multiple layers including foam, visco, memory foam, latex, polyester fiber, non woven, jacquard fabric, knitted fabric, leather and down fill.
Double gantry servo motor driven bridge from two sides to have highest precision, speed and durability
Minimum bobbin change with XXL spools (Durkopp Adler)
Auto Lubrication System: The sewing head(s) are equipped automatic lubrication systems to prevent wear of parts and avoid down time for efficiency and consistency
Elektro CARE: Integrated Online Support Module Elektroteks Connected Service: Online support module that allow Elektroteks engineers to connect your machine and offer quick troubleshooting and training.
Techical Details
Max. Sewing Speed
3500 rpm
Number Of Sewing Heads
2
Max. Material Thickness
10 cm
Stitch Length
1 mm - 10 mm
Sewing Head Type
Dürkopp Adler 867
Stitch Type
Lock Stitch
Type Of Bobbin
Dürkopp Adler XXL - Dia: 32mm
Suggested Needle Size
120 – 160
Max. Sewing Speed
21 m/min
Max. Jumping Speed
60 m/min
Max. Sewing Area (Net Stitching Size)
X1-FRY1 1.85m x 2.65m (small clamp) - 1.70m x 2.50m (big clamp)
X1-FRY2 1.85m x 3.00m (small clamp) - 1.70m x 2.80m (big clamp)
X1-FRY3 1.85m x 3.35m (small clamp) - 1.70m x 3.20m (big clamp)
X2-FRY1 2.25m x 2.65m (small clamp) - 2.10m x 2.50m (big clamp)
X2-FRY2 2.25m x 3.00m (small clamp) - 2.10m x 2.80m (big clamp)
X2-FRY3 2.25m x 3.35m (small clamp) - 2.10m x 3.20m (big clamp)
X3-FRY1 3.00m x 2.65m (small clamp) - 2.85m x 2.50m (big clamp)
X3-FRY2 3.00m x 3.00m (small clamp) - 2.85m x 2.80m (big clamp)
X3-FRY3 3.00m x 3.35m (small clamp) - 2.85m x 3.20m (big clamp)
