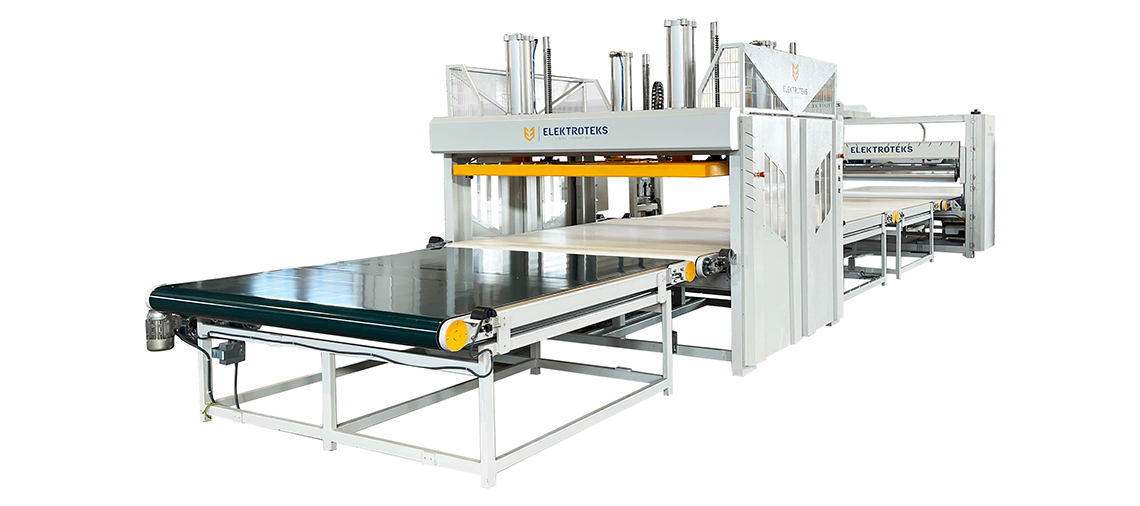

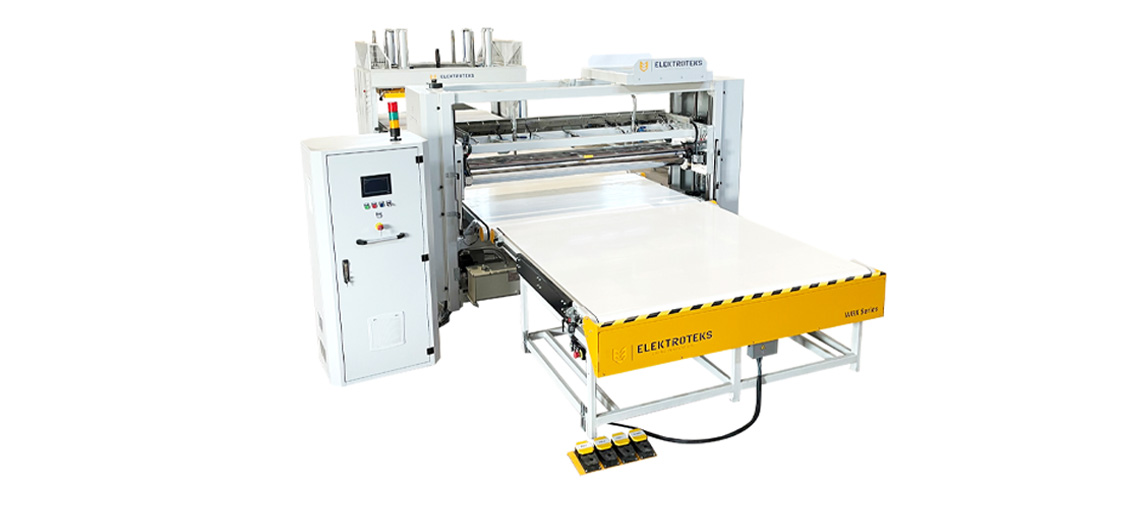

WBX-300 is an automated lamination line in order to apply onecomponent water-based adhesive evenly onto the layers of foam. Advanced glue amount control system makes you apply right amount of glue onto each mattress component. By keeping the glue amount consistent and correct level, WBX-300 avoids glue waste, excessive drying time and hard cleaning process.
WBX-300 comes with standard multiple material height measuring systems in order to provide high consistency for different forms and colors of layers. Advanced motion control and material detection system makes WBX-300 able to follow the contour of the foam for curved profile surface lamination.
In-line heavy duty compression system (ET-HLPR-S) provides the simultaneous activation of glue and perfect lamination.
Add-on infrared heater (ET-IDC) is integrated on WBX-300 in order to cure the adhesive right after roll coating results in minimizing curing time and labor cost.
Optional material feeding robot
PCM Cooling Gel Lamination Mode
While the tailor made design brings a lot of advantages for the production capacities of 200-2000 mattresses per shift, it also makes you be able to see your production simulation from your office or smartphone.
Accurately adjusted lamination weight per area
Auto-adjusting roll coaters for different thicknesses and contoured or convoluted foam layers
Double side gantry servo motors driven height adjusting system
Adjustable roller compression depth over the surface to adjust the amount
Programmable auto water spraying system over the rollers
Sliding conveyor for ergonomic clean-up process
Super high precision chromium-coated stainless steel rollers
Independently adjusted infrared lamp zones for uniform heating and energy saving
Automatic surface temperature detection for auto adjusting the drying power and drying time
4 tons even and balanced compression unit with auto height detection and adjustment
