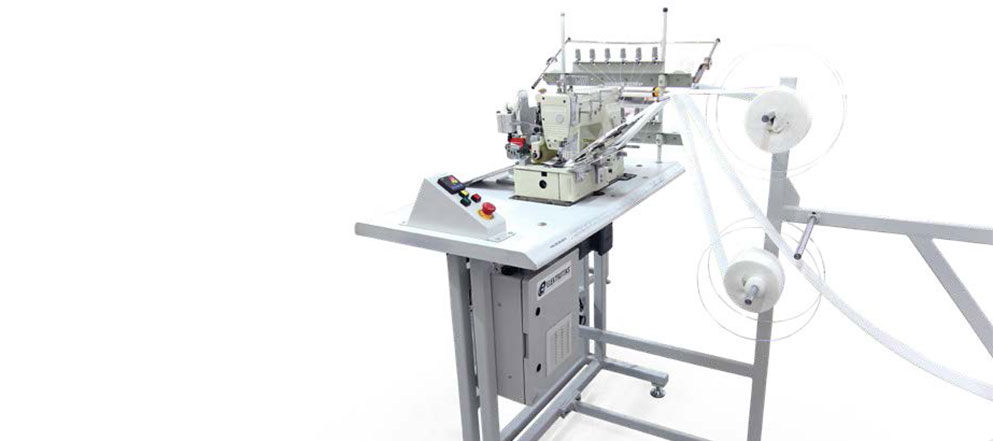

LEON-MH-C is a full automatic mattress handle making and cutting machine with the electronic adjustment of cut handles’ length.
The 12 needle high speed chain-stitch sewing head and heavy duty guillotine cutter allows the production of different handles

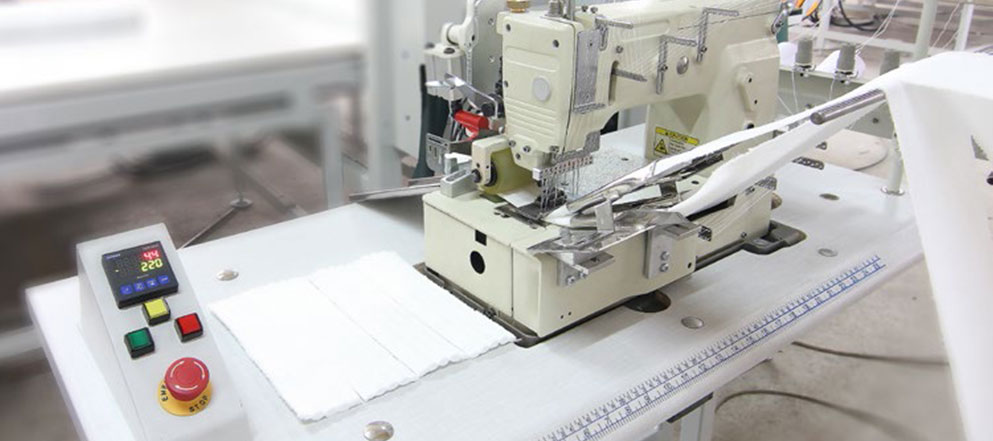

High speed 12 needle chain-stitch head
User friendly handle length adjustment with high precision
Different folders are available for special handles
Heavy duty guillotine cutter
Full automatic feeding, sewing and cutting process
Adjustable sewing speed
Easy adjustable handle length
Pneumatic footlift
Ability to work with 4 different materials at the same time
Thread break sensors
Auto Lubrication System : The sewing head(s) are equipped automatic lubrication systems to prevent wear of parts and avoid down time for efficiency and consistency
Techical Details
Max. Sewing Speed
2 500 rpm
Capacity
50 handles/min
Sewing Head
12 Needle Chain Stitch
Stitch Type
Chain Stitch
Electronic Adjustment of Handle Length
Yes
Automatic Handle Cut in Length
Yes
Finish Width of the Handle
50 mm (Options are Available between 20 mm – 65 mm)
