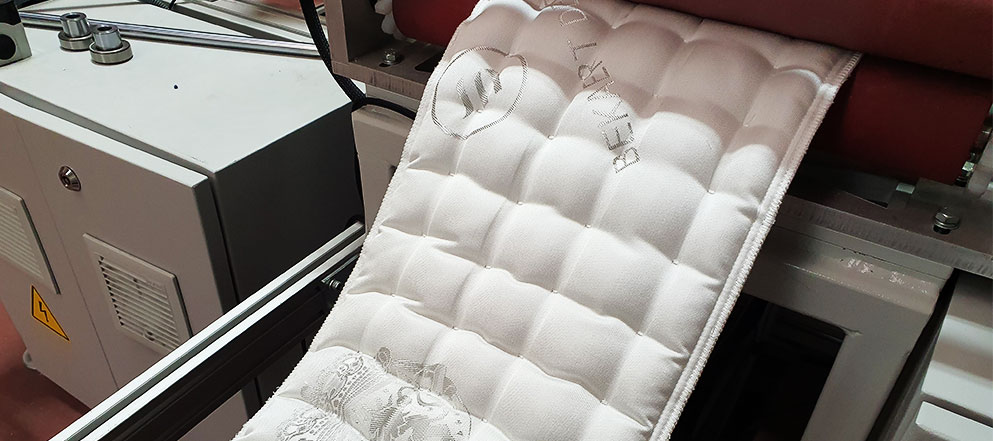

The LEON-PT4 Mattress Border Side Stitching Machine is designed to make luxurious hand-stitched borders.
The LEON-PT4 can make one mattress border less than 5 minutes according to number of tacks and mattress size. It offers unlimited positioning of tacks as 2-3-4-5-6 tack on the row. It offers ability to create different tack designs by your own using the touch screen panel.
Unlike the machine in the market, LEON-PT4 offers not only hand-stitched border but also circle, rectangle, plus shape, s shape, and various different figures to be stitched.
It will boost the quality of the mattress and make you have more special mattresses compared to the ones in the market.
Limitless tack positions
Ability to work with 1, 2, 3 or 4 heads
Full servo motor positioning of the sewing heads

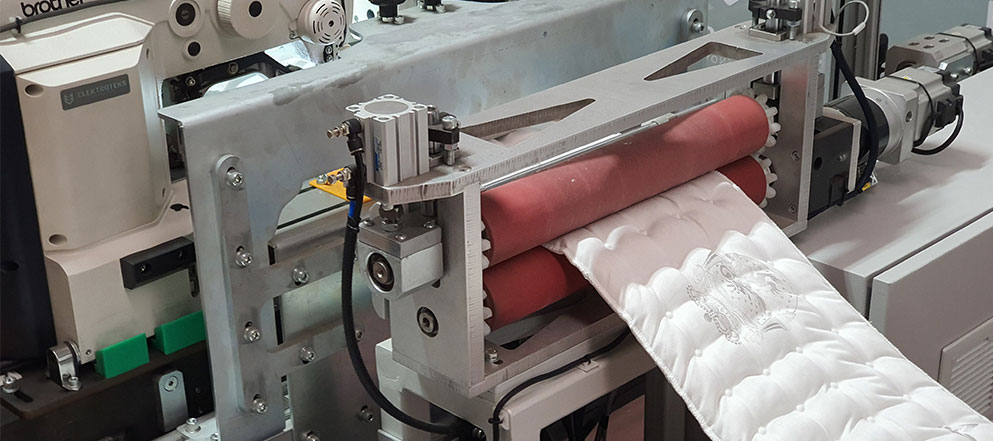

Servo motor heavy duty material pulling
Hand stitch, circle, triangle, rectangle, etc. tack designs

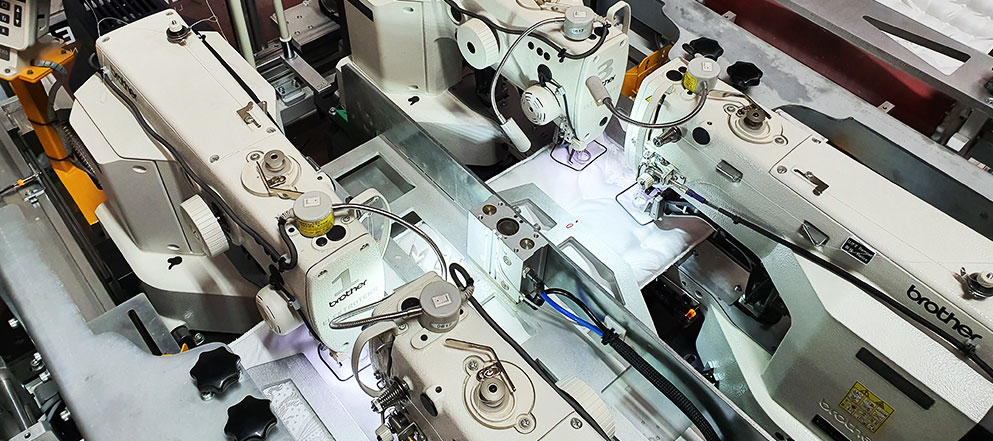

Reliable Brother Heads
Automatic bobbin finish stop system
Smooth movement of the border for accurate and straight tacks
Independently servo motor driven sewing head positioning
Adjustable distance in between 4 heads
Maximum sewing precision with auto material releasing pullers
Auto Lubrication System : The sewing head(s) are equipped automatic lubrication systems to prevent wear of parts and avoid down time for efficiency and consistency
Able to draw tack designs
High maintenance ergonomics thanks to tilting heads
ElektroCARE: Integrated Online Support Module Elektroteks Connected Service: Online support module that allow Elektroteks engineers to connect your machine and offer quick troubleshooting and training.
Optional border serging system at the infeed
Optional multineedle border sewing system
0.8 - 3.0 m/min (pattern dependent)
Number of Sewing Heads
Max. Border Width
Max. Sewing Speed
2 500 rpm
Auto Border Roller
Thread Break Sensors
New Pattern Creation
Programmable Tack Position Designs
1 100 kg
380 VAC (III+N+TT) (Optionally Changed)
2.3 m x 4.0 m (W x L)
